Rack-mounted PDUs are an essential element of critical load power infrastructure in data centers, server rooms, telecommunications and industrial IT closets. Q360 PDUs meet the highest demands of the industry: with comprehensive configurations, a wide range of operating conditions, and reliable power distribution, power measurement and network management.
Network Management Controller
Hardware Network Management Controller hot swap
Network Management Controller

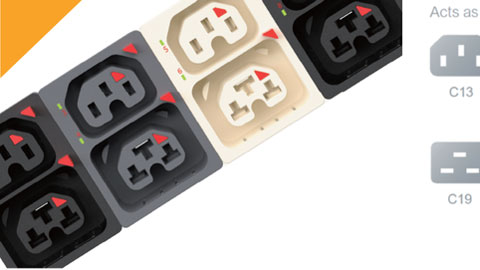

Versatile 4-in-1 hybrid outlet supports C14, C16, C20 & C22 power cords in a single socket, simplifying IT equipment deployment.
Design Features
Type: Model Stream
- Number of phases: 1 or 3
- Input current 16A to 63A
- Load capacity 3700, 7400, 11000, 22000VA and 43.5kVA
- Compact, aluminum & rugged steel housing
- Exhaustive outlet configurations for all scenarios
- Outlets are evenly distributed across the entire height of the vertical PDUs
- Various installation options without the need to purchase additional accessories
Type: Model Xtream
- Wider range of input current: 10A up to 125A
- Form factors: Vertical Zero U & Horizontal 1U, 2U & 3U
- Neutral locking outlets for both C13/C15/C19/C21 connections

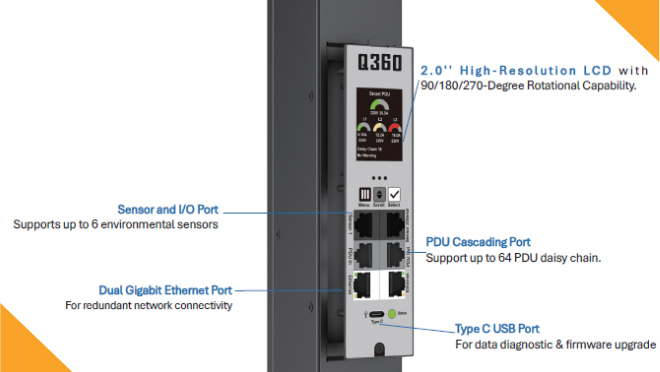

- Support communications protocols SNMP v1, v2 & v3, SNTP, HTTP, HTTPS, FTP
- USB Type-C port for local firmware upgrade and downloading event logs

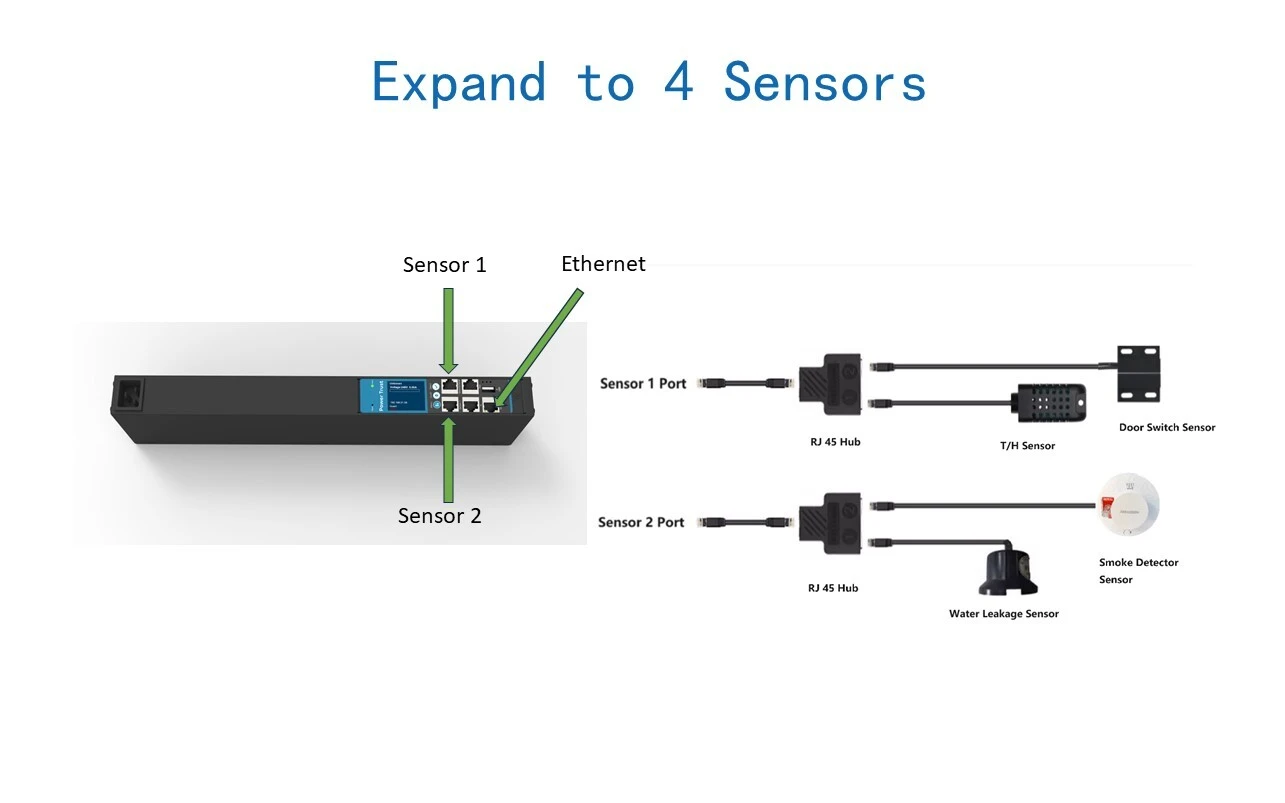

- Provide support multi-functional sensors for temperature and humidity monitoring, leakage and smoke detection, rack door status, liquid pressure measurement, and more.
- PDU cascading capability up to 64
Accessories PDUs
E-Book Rack Power Distribution Unit (rPDU)
A Rack Power Distribution Unit (PDU) is a critical component for managing power distribution within server racks.
