In today’s digital era, data centers play a crucial role in supporting IT infrastructure. The reliability and efficiency of power and cooling systems are essential factors that cannot be overlooked. Load Banks and Heat Loads are critical tools for testing and verifying the stability of electrical and cooling systems, ensuring that data centers operate at peak performance under real-world load conditions.
Specialized Knowledge
“While we primarily focus on data centers, we also provide load banks in a variety of sizes to support the deployment and testing of data center applications, voltages, and capacities for any application. Our load banks are reliable and proven to work anywhere the risk of power outages threatens production, efficiency, or safety.”

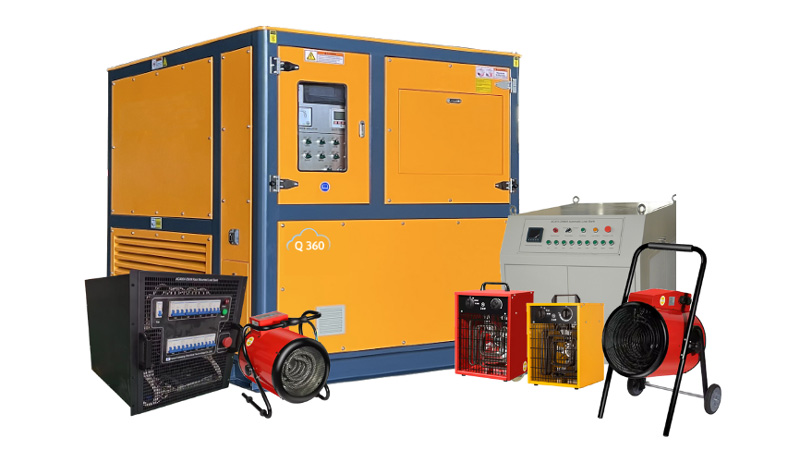

AC LOAD BANK

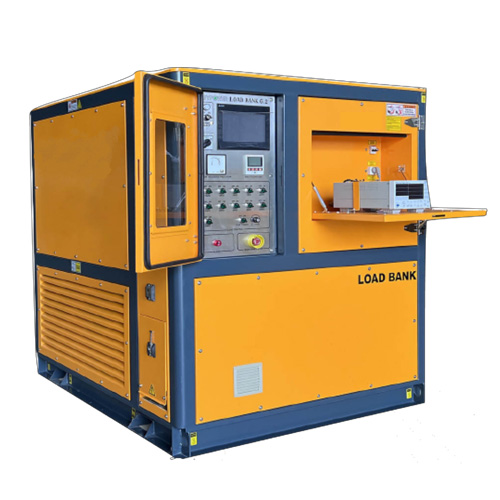

Load Bank – 1000kW
Specifications
- Testing Capacity : 0-1000 kW
- Type of load : Resistive, PF = 1.0
- Duty : Continuous
- Cooling system : Industrial grade axial fan
- Phase : Available at both single and three phase
- Rated testing voltage : 400 VAC
- Frequency : 50 – 60Hz
- Dimensions (L*W*H)(mm) : 2400*2030*2100
- Weight : 2150 kg

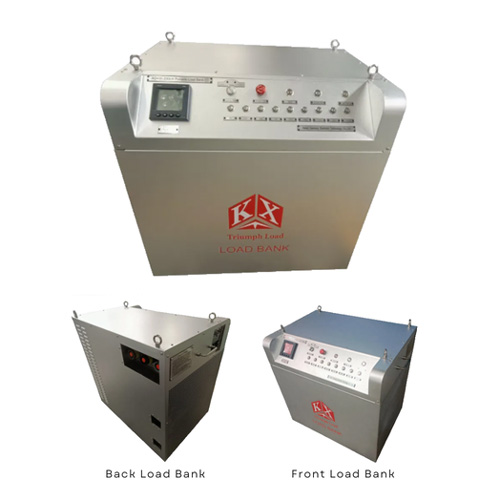

Load Bank – 200kW
Specifications
- Power Supply : 400 Vac
- Frequency : 50 – 60Hz
- Phase : 3 phase, 4 wire
- Rating Power : 200 kW
- Load Step : 9 Load Steps (From 1-200kW freely)
- Power Factor : 1
- Communication Interface : RS485
- Cooling : Forced air cooling, horizontal air inlet & outlet
- Dimension (LWH)(mm) : 748517728
- Net weight : 75 kg
- Ambient Temperature : -20℃～+50℃
- Relative Humidity : ≤95%
- Altitude : ≤2500 meter
- Atmospheric Pressure : 86～106kPa
Features
- Intelligent control (PC control)
- Automatic control load bank by data processing software of PC
- Local manual control with multi load steps, min load steps 1kW
- Data processing software
- load or unload with one key easy to control.
- 3 line LED multi-function meter display
- Manage the test data, form curve, graph and can be printed.

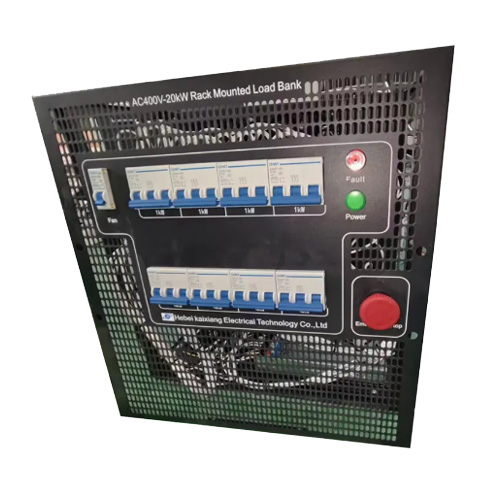

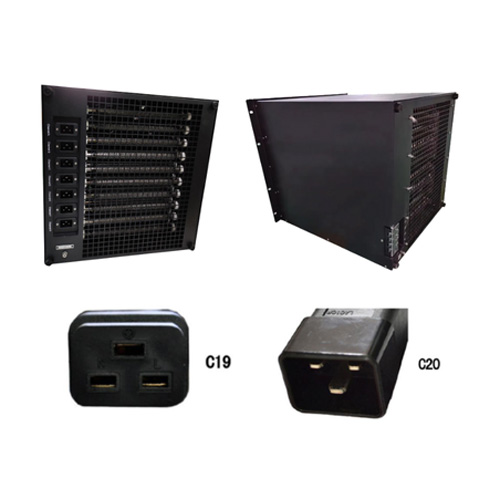

Rack Mount – 20kW
Specifications
- Power Supply : 230, 400 Vac
- Frequency : 50-60 Hz
- Phase : Single phase, Three Phase
- Rating Power : 20 kW
- Load Step : 8 Load Steps (1-20kW)
- Power Factor : 1
- Connection Mode : C20 port at load bank side
- Cooling : Forced air cooling,
- air intake in front and exhaust in back
- Dimension (LWH)(mm) : 10U (500483.6444.5)
- Net weight : 35.0 kg
- Ambient Temperature : -10℃～+40℃
- Relative Humidity : ≤95%
- Altitude : ≤1500 meter
- Atmospheric Pressure : 86～106kPa
HEAT LOAD

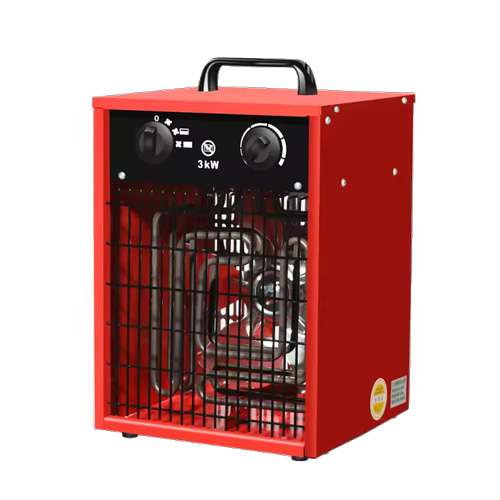

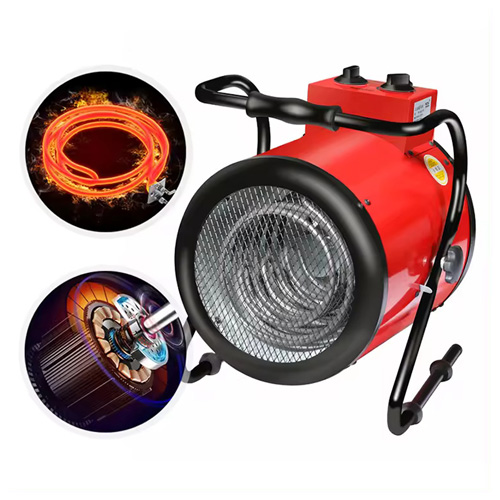

Heat Load – 3kW
Specifications
- Power Supply : 220-240 Vac
- Frequency : 50 Hz
- Phase : Single phase
- Rating Power : 3,000 Watts
- Heating output selectable : 30/1500/3000W
- Thermostat : Adjustable (or disable)
- Protection Class : IPX4
- Power Plug : IEC60309, 32A, 2 Poles
- Cable Sizing : 3 x 2.5 Sq.mm., length 4m
- Heating area : 90 m3
- Air volume : 510 m3/h
- Dimension (LWH)(mm) : 305280430
- Net weight : 6.2 kg
- Stacked : Up to 3 layers
Features
- With Cooling fan
- Simple manual controls
- Low maintenance needed
- With Time delay function
- Over heater protection device
- Adjustable thermostat control
- Free standing portable design
- High quality, durable stainless-steel element

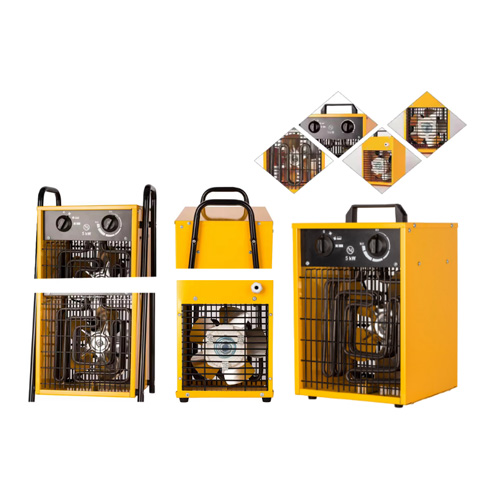

Heat Load – 5kW
Specifications
- Power Supply : 380-400 Vac
- Frequency : 50 – 60Hz
- Phase : Three phase
- Rating Power : 5,000 Watts
- Heating output selectable : 30/2500/5000W
- Thermostat : Adjustable (or disable)
- Protection Class : IPX4
- Power Plug : IEC60309, 32A, 3 poles
- Cable Sizing : 3 x 2.5 Sq.mm., length 4m
- Heating area : 150 m
- Air volume : 530 m /h
- Dimension (LWH)(mm) : 295260390
- Net weight : 6.2 kg
- Stacked : Up to 3 layers
Features
- Intelligent control (PC control)
- Automatic control load bank by data processing software of PC
- Local manual control with multi load steps, min load steps 1kW
- Data processing software
- load or unload with one key easy to control.
- 3 line LED multi-function meter display
- Manage the test data, form curve, graph and can be printed.

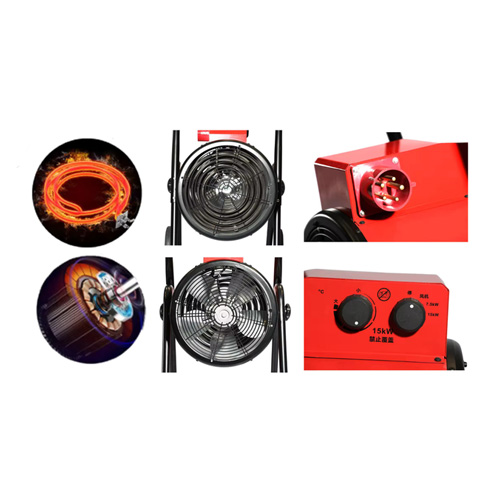

Heat Load – 15kW
Specifications
- Power Supply : 380-400 Vac
- Frequency : 50 Hz
- Phase : Three phase
- Rating Power : 20,000 Watts
- Heating output selectable : 220/10000/20000W
- Thermostat : Adjustable (or disable)
- Protection Class : IPX4
- Heating area : 220 m
- Air volume : 2,650 m /h
- Dimension (LWH)(mm) : 495358675
- Net weight : 32.0 kg
Features
- With Cooling fan
- Simple manual controls
- Low maintenance needed
- With Time delay function
- Over heater protection device
- Adjustable thermostat control
- Free standing portable design
- High quality, durable stainless-steel element

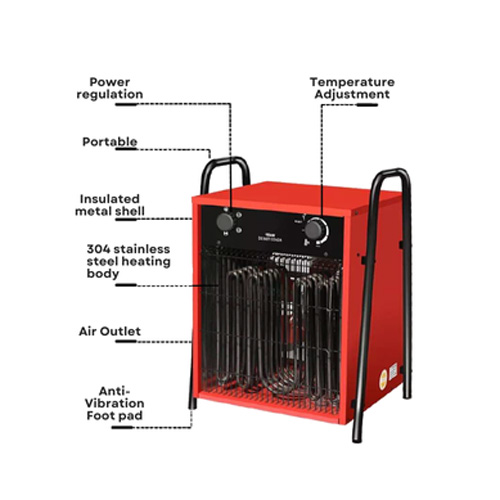

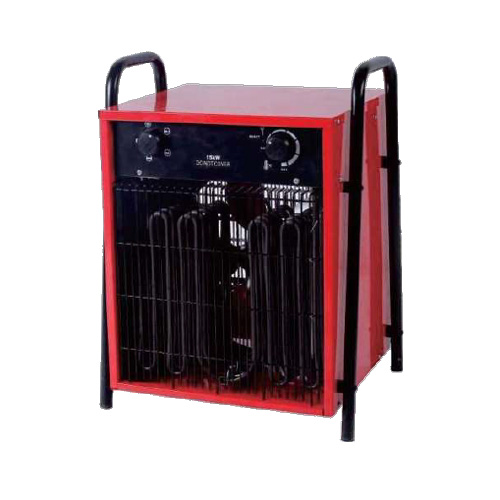

Heat Load – 20kW
Specifications
- Power Supply : 380-400 Vac
- Frequency : 50 Hz
- Phase : Three phase
- Rating Power : 20,000 Watts
- Heating output selectable : 220/10000/20000W
- Thermostat : Adjustable (or disable)
- Protection Class : IPX4
- Heating area : 220 m
- Air volume : 2,650 m /h
- Dimension (LWH)(mm) : 495358675
- Net weight : 32.0 kg
Features
- With Cooling fan
- Simple manual controls
- Low maintenance needed
- With Time delay function
- Over heater protection device
- Adjustable thermostat control
- Free standing portable design
- High quality, durable stainless-steel element
E-Book Load Bank & Heat Load
A Load Bank is a device used to simulate electrical loads for testing and verifying the performance of power systems, such as generators and UPS. It ensures that the system can handle loads safely and operate with stability.
